On September 7, 2023, the new national standard GB/T 20234.1‑2023 Connecting devices for conductive charging of electric vehicles — Part 1: General requirements for new‑energy‑vehicle charging guns was officially released and came into force. Compared with GB/T 20234.1‑2015, GB/T 20234.1‑2023 sets more stringent requirements for charging guns in terms of safety, durability and reliability.

Common Test Standards for Charging Guns

GB/T 20234.1 Connecting devices for conductive charging of electric vehicles — Part 1: General requirements

GB/T 20234.2 Connecting devices for conductive charging of electric vehicles — Part 2: AC charging interfaces

GB/T 20234.3 Connecting devices for conductive charging of electric vehicles — Part 3: DC charging interfaces

GB/T 18487.1 Electric vehicle conductive charging system — Part 1: General requirements

IEC 62196‑1 Plugs, socket‑outlets, vehicle connectors and vehicle inlets — Conductive charging of electric vehicles — Part 1: General requirements

IEC 61851‑1 Electric vehicle conductive charging system — Part 1: General requirements

UL 2251 Electric Vehicle Plugs, Receptacles, and Vehicle Connectors

---

NTEK Charging Gun Test Items

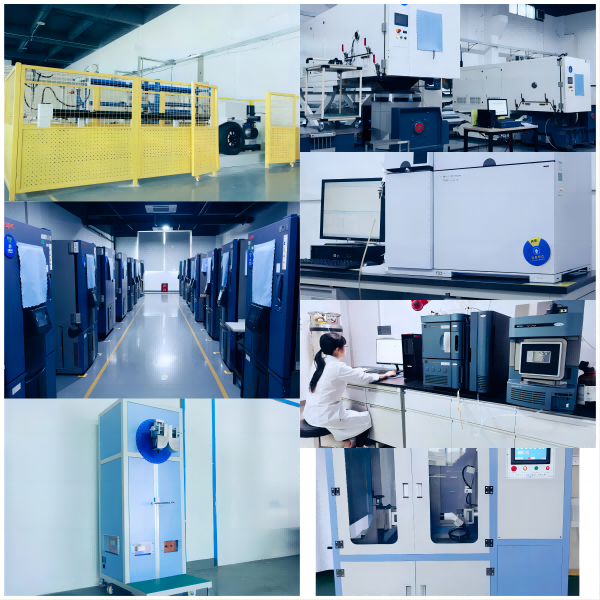

In compliance with standards including GB/T 20234.1‑2023 and IEC 62196‑1:2022, NTEK has introduced a complete set of charging‑gun test equipment to satisfy testing and certification requirements for AC charging guns. Core test equipment includes vehicle rolling test machine, charging‑interface cable bending tester, charging‑gun mechanical strength test equipment, charging‑gun insertion‑withdrawal endurance tester, resistive‑inductive load cabinet, high‑power power‑supply system, etc.

General Requirements

Requirements for appearance and construction

Dimensional and type requirements for charging interfaces

Requirements for screws, current‑carrying parts and connections

Requirements for terminals and terminations

Protection against electric shock

---

Electrical Performance

Earthing measures

Breaking capacity

Surface temperature

Temperature‑monitoring requirements

Insulation resistance and dielectric strength

---

Durability Tests

Endurance test for locking devices

Endurance test for normal operation (service life)

Contact endurance test

Switch‑element endurance test

---

Environmental Reliability

High‑low temperature resistance

Alternating damp‑heat

Temperature shock

IP protection degree

---

Mechanical Reliability

Vehicle rolling test

Connection strength of charging cable (pull‑twist test)

Mechanical strength (pendulum impact, bending, etc.)

Vibration / shock test

Misalignment operation test

---

Material Tests

Ageing resistance of rubber and thermoplastic materials

Corrosion and rust resistance of enclosures

Heat resistance, flame resistance and tracking resistance test

Restricted‑hazardous‑substance testing (ELV, RoHS, SOC, etc.)
