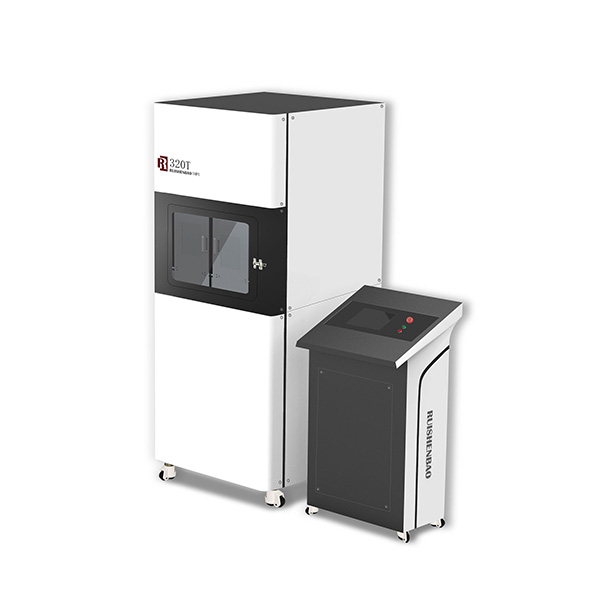

Ultra High Pressure System: UHPS-NTEKInLab

Overview:

UHPS ultra-high pressure system is developed by RUISHENBAO® and remains the world's first automatic ultrahigh pressure pellet press to sample preparation for spectral or X-ray fluorescence analysis, which is maximum press force can reach 320T so that it press produces high-quality pressed pellets with a mirrorlike surface necessary for optimal XRF results. The UHPS achieves the desired homogeneity and stability of each individual pellet with a maximum of reproducibility.There is no dilution effect and effectively overcomes powder effect of the XRF thanks to ultra-high pressure direct powder pelletizing press mode. It greatly improves the analysis of technical indicators for XRF method for example: the detection limit, precision, accuracy and long-term stability. It effectively expands the XRF on the applicable scope for all kinds of samples. The system can be used as an important direct pressing sample technology and method for sample preparation of the XRF, XRD, laser fluorescence spectroscopy, and laser induced breakdown spectroscopy.

Features:

High efficiency, typical pressing cycle is only 2 minutes;
Without add other additives to help dilute the sample, improve the measurement sensitivity of trace elements;
The only variable is press force in sample preparation process, it can significantly improve the reproducibility of sample preparation;
Overall improvement of XRF method include detection limit, precision, accuracy and stability;
It can replace fusion bead method to prepare sample for XRF;
Difficult materials are pressed perfectly (such as silicon, cement raw meal and clinker, etc.) without add the binder;
Press produces high-quality pressed pellets with a mirrorlike surface, no mineral effect and the effect of the particles;
Safety shield, it is convenient and accurate thanks to automatic and fully programmable.

Fields of Application:

The new UHPS pellet pressing system can solve some problems that conventional pellet press cannot directly press to some kinds of samples or prepare effective samples without binder. It press produces high-quality pressed pellets with non-interference, non-destructive and no “dilution effect” for XRF. UHPS system is a highly efficient energy-saving environmental protection and new security sample preparation equipment. It has a pivotal role and suitable in innovative development for scientific research, laboratory testing, product testing and quality control, etc.

Powder material: soil, ore, concentrate, dust, slag, cement, limestone, dolomite, glass, quartz, clay, etc.;
Directly pellet press difficult materials which are prepared with the binder or additives in conventional pellet press: ferrosilicon, iron concentrate and so on;
Alternative to fusion system for sample preparation.

For more information, please contact us by email: info@ruishenbao.com

Technical Data:

Model	UHPS
Maximum pressure type	200T	320T
Pressure force	0~200T	0-320T
Operating temperature	0~40℃
Precision of pressure adjust	0.1T
Hydraulic oil	antiwear hydraulic oil 46#
Voltage	AC 380V±10%, 50 Hz, 32A, 3-phase five-wire
Power draw	9.5kW
Pressing in shells	Diameter 40 mm, or other as required
Dimensions(L×W×H)	800×800×1900mm + 550×650×1100mm
Net weight	1.6T

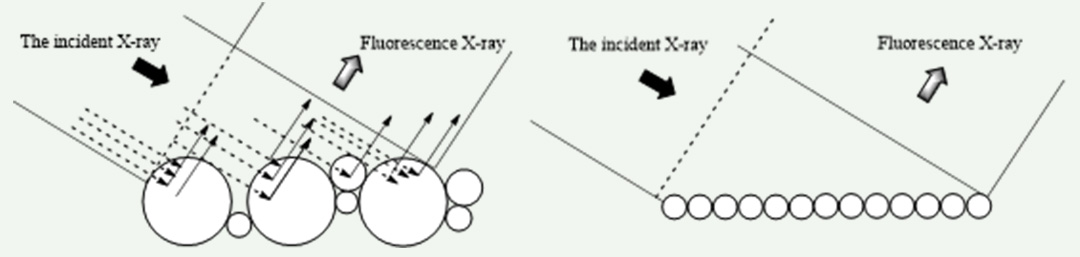

The comparison of effects different pressure pelleting powder sample in XRF

The examples of UHPS direct pelleting samples (Pressure is 200T, Hold time is 10s)

Geology Standard Sample

Soil GBW07106
Quartzite GSR4
Granite GSR1
Cement
Silicon Iron

Multiple protection devices ensure safety use:

The full set of pressing tool adopts tungsten carbide, which outer layer uses special alloy with high toughness explosion hoop to provide active protection;
On three sides of working chamber adopts thickening steel to provide passive protection;
Shield observation window uses double bullet-proof grade high pressure resistant organic glass;
Shielding door uses contact safety locking device.
